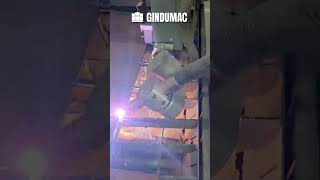

Voortman V304 plasma cutting machine
Kaiserslautern
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+49 162 40...
Show
+49 162 4027581
Germany, Berlin
Germany, Kaiserslautern
Germany, Nürtingen
Germany, Nürtingen
Location: HU
Voltage stabilizer: not included
Ambient temperature: 0–35°c, max. 95% relative humidity
Working height: 705 mm (±20 mm)
Power per servo drive: 26 kw
Acceleration: 1000 mm/s²
Maximum pierce capacity: 40 mm
Dross-free cutting (maximum): 35 mm
Marking lines: yes, with the same consumables
Plasma gas (mild steel): cutting: o₂ (999% pure, clean, dry, oil-free); marking: argon gas or o₂/air (999% pure, clean, dry, oil-free)
Shield gas (mild steel): yes
Automatic gas console: yes
Grounding: maximum 6 m of the machine. Ac power, pe, and service grounds must comply with local and national codes
Machine Benefits
Qualitative Machine Benefits
The plasma 3d bevel unit has a maximum acceleration of 2000 mm/s² on the z-axis
a maximum speed of 365 mm/s on the z-axis
a bevel angle of ±50° depending on the torch type
a positioning accuracy of ±0. 5°
and supports material thicknesses of 6–50 mm
The oxy-fuel cutting unit is a nozzle mix type with a magnetic valve and backfire protection for gas supply
automatic external ignition
a maximum thickness of 200 mm for 1 or 2 pieces
125 mm for 3 pieces
100 mm for 4 pieces
75 mm for 5 pieces
and 60 mm for 6 pieces
using acetylene gas as standard
propane as an optional gas
and o₂ as the cutting gas
The voortman height control has a maximum acceleration of 2000 mm/s² on the z-axis and a maximum speed of 365 mm/s on the z-axis
Working height: 705 mm (±20 mm)
Technical Machine Benefits
Cutting speed for mild steel is approximately 3700 mm/min at 90a for 6 mm
3600 mm/min at 200a for 12 mm
1600 mm/min at 300a for 25 mm
720 mm/min at 300a for 40 mm
400 mm/min at 300a for 50 mm
and 100 mm/min at 300a for 80 mm
Extra Information
Machine still under power
